CA Cycleworks - HM69 Parts kit for HM1100 EVO and 796

Ca CycleworksSKU: CAC-KIT-HM69-EVO

Option:
Price:
Sale price$123.00

>> Get a shipping estimate 📦

Stock:
Sold out
 More payment options

Description

HM69 Parts kit for HM1100 EVO and 796 is available to buy in increments of 1

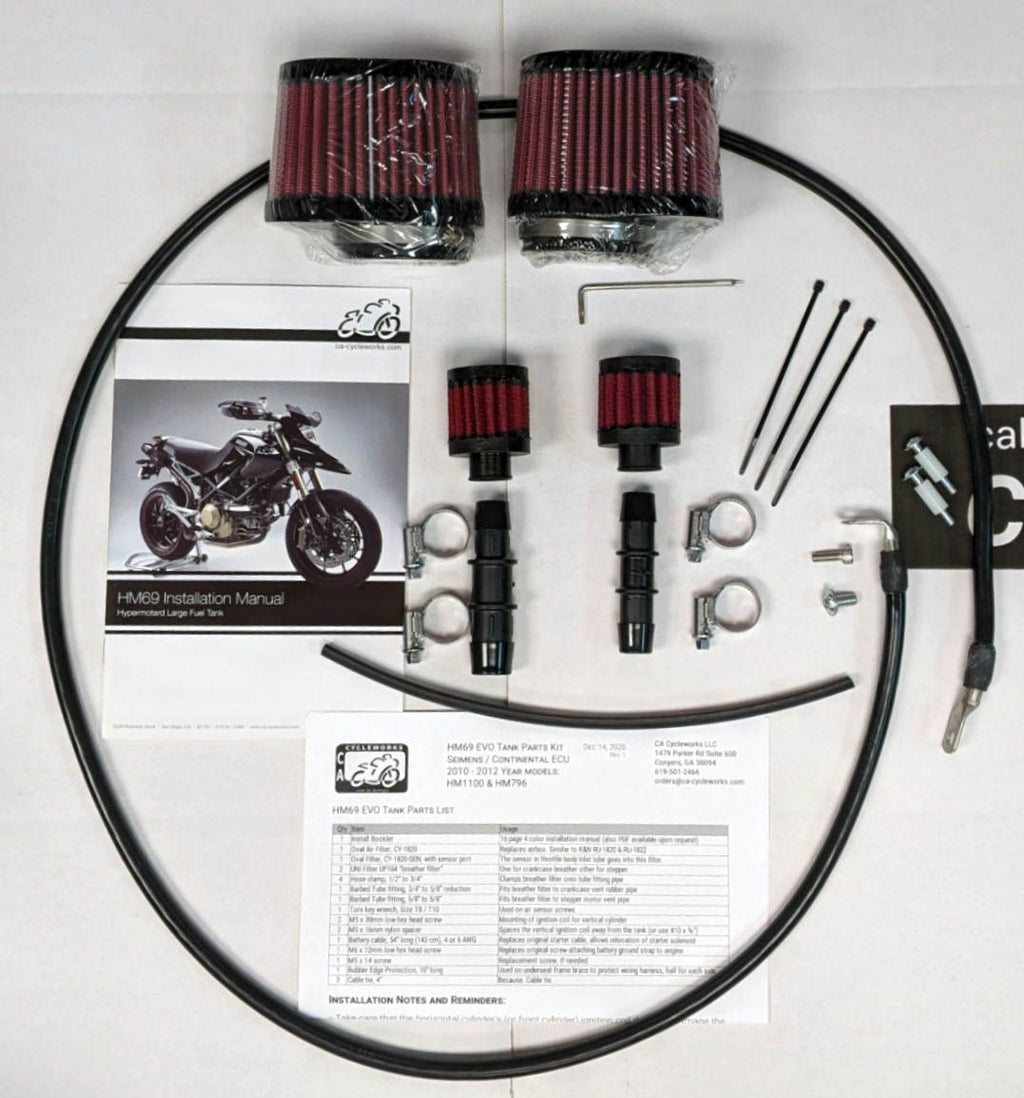

Parts kit that accompanies the bare plastic HM69 fuel tank we manufacture.

Qty : Item : Usage


1 : Install Booklet : 16 page 4 color installation manual (also PDF available upon request)
1 : Oval Air Filter, CY-1820 : Replaces airbox. Similar to K&N RU-1820 & RU-1822
1 : Oval Filter, CY-1820-SEN : with sensor port The sensor in throttle body inlet tube goes into this filter.
2 : UNI Filter UP104 : “breather filter” One for crankcase breather other for stepper.
4 : Hose clamp, 1/2” to 3/4” : Clamps breather filter onto tube fitting pipe
1 : Barbed Tube fitting, 3/4” to 5/8” : reduction Fits breather filter to crankcase vent rubber pipe
1 : Barbed Tube fitting, 5/8” to 5/8” : Fits breather filter to stepper motor vent pipe
2 : M5 x 30mm low hex head screw : Mounting of ignition coil for vertical cylinder
2 : M5 x 16mm nylon spacer : Spaces the vertical ignition coil away from the tank (or use #10 x ⅝”)
1 : Battery cable, 54” long (143 cm) : 4 or 6 AWG Replaces original starter cable, allows relocation of starter solenoid
1 : M6 x 12mm low hex head screw : Replaces original screw attaching battery ground strap to engine
1 : M5 x 14 screw : Replacement screw, if needed.
3 : Cable tie, 4” Because. Cable tie.
1 : Torx key wrench, Size T8 / T10 : Used on air sensor screws
1 : Rubber Edge Protection, 10” long : Used on underseat frame brace to protect wiring (cut in half; 5" each side)
