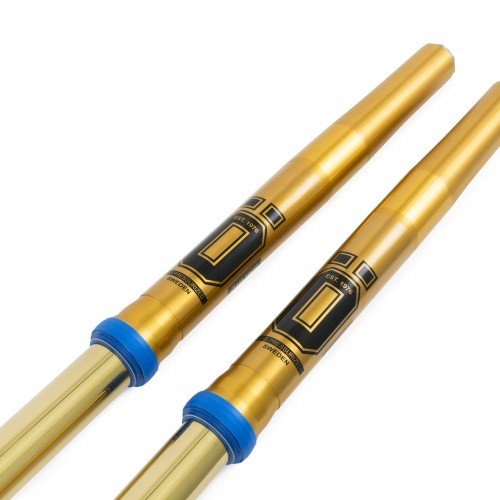

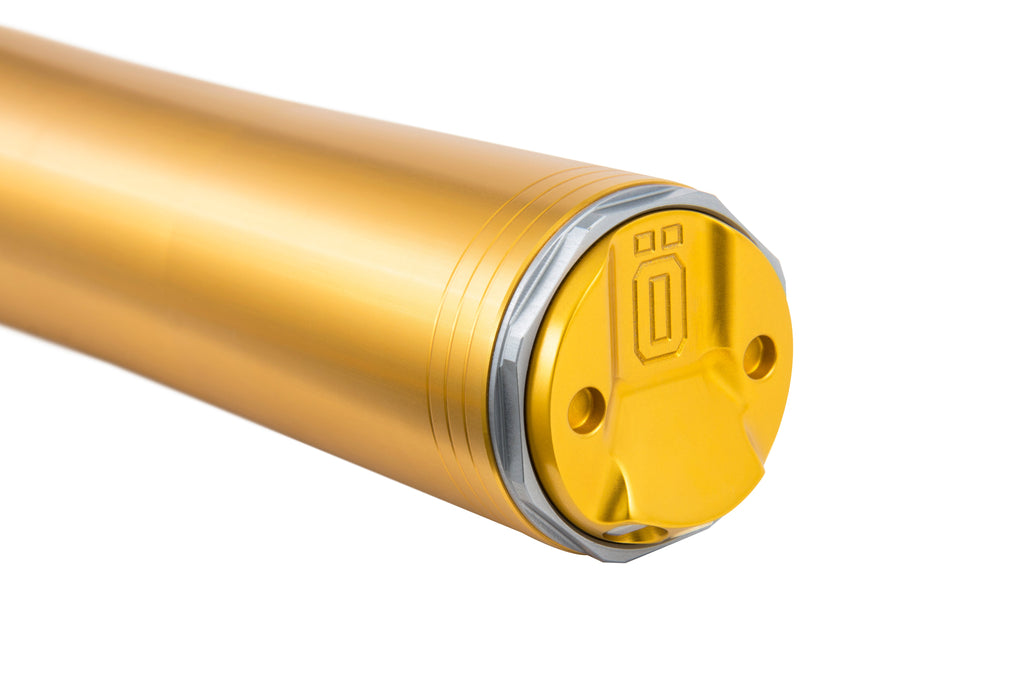

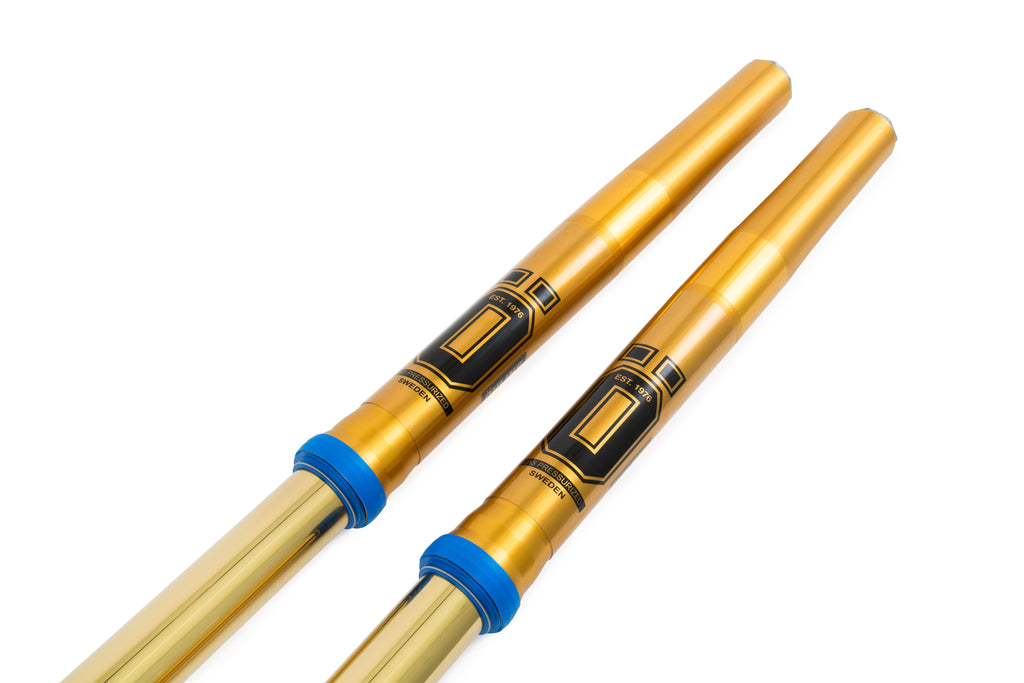

ÖHLINS - Off-Road RXF 48 Fork (FFX 1302)

OhlinsSKU: OHLINS-FFX_1302

Options:
Price:
Sale price$5,416.00

Qualifies for FREE SHIPPING📦

Stock:
In stock

Description

FFX 1302

The front fork is updated on many areas, such as new outertube as well as a new steel tube with a new coating to give less friction.

The 22mm cartridge pressurized cartridge kit inside has a new piston holder, that also helps out when doing maintenance of the fork.

The check valve is also improved with the service capability in mind.

The fork bottoms now comes in a different aluminium alloy that is stronger towards hitting stones and at the same time incorporates the strength necessary to have when landing hard after long jumps.

Less friction in combination with small improvements in many areas, still with all of the last years news inside, we give you improvements that brings your bike to top level racing.

Type Code: T22DR1C1

Tech
  • Unique and further improved cartridge kit with Öhlins TTX22 design
  • New innertube surface treatment, gives less friction
  • New stronger fork bottom material, more resistant to hitting stones
  • Maintenance is done easier thanks to new piston holder
  • New outer tube stickers to protect the outer tube better
  • Designed to be used with Öhlins fluids and spare parts
  • Available for most major MX and Enduro models
  • New protective stickers

Spec. by Application for FFX 1302

Application: 2019-2023 Beta RR 2T 125
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 2T 125 Racing
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 2T 200
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 2T 200 Racing
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 2T 250
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 2T 250 Racing
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 2T 300
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 2T 300 Racing
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 350
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 350 Racing
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 390
Notes: 08765- spring series *FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 390 Racing
Notes: 08765- spring series * Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 430
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 430 Racing
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 480
Notes: 08765- spring series *FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Application: 2019-2023 Beta RR 4T 480 Racing
Notes: 08765- spring series *Replaces FFX 0302*
Length: 940 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-43
Type code: T22DR1C1
Product Family: RXF 48
Fitment

Fitment

This item may fit other vehicles not listed here.
Beta RR 2T 125 2019-2023
Beta RR 2T 125 Racing 2019-2023
Beta RR 2T 200 2019-2023
Beta RR 2T 200 Racing 2019-2023
Beta RR 2T 250 2019-2023
Beta RR 2T 250 Racing 2019-2023
Beta RR 2T 300 2019-2023
Beta RR 2T 300 Racing 2019-2023
Beta RR 4T 350 2019-2023
Beta RR 4T 350 Racing 2019-2023
Beta RR 4T 390 2019-2023
Beta RR 4T 390 Racing 2019-2023
Beta RR 4T 430 2019-2023
Beta RR 4T 430 Racing 2019-2023
Beta RR 4T 480 2019-2023
Beta RR 4T 480 Racing 2019-2023
