Description

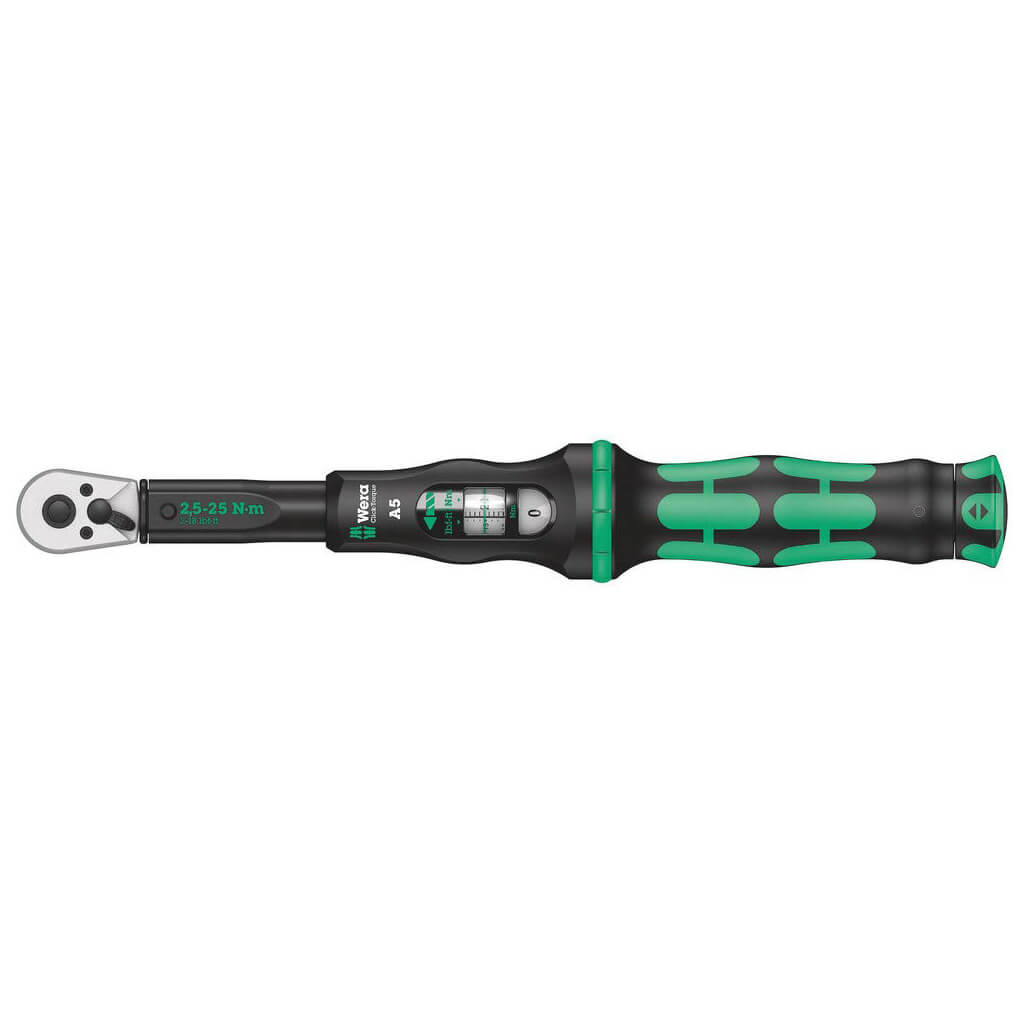

1/4 in. Square Drive 2.5-25 Nm Click-Torque A 5 Torque Wrench with Reversible Ratchet has robust Wera design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values also facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. For right-hand use (clockwise torque-control) and with 45-tooth reversible ratchet mechanism.
Features
- With 1/4 in. square drive, reversible ratchet, 45 teeth

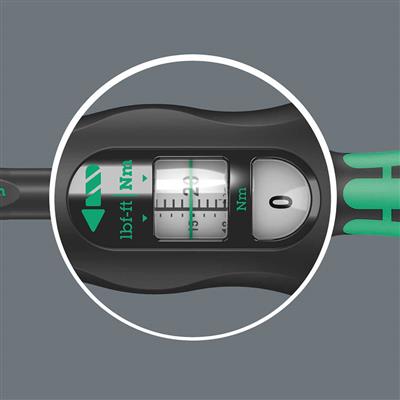

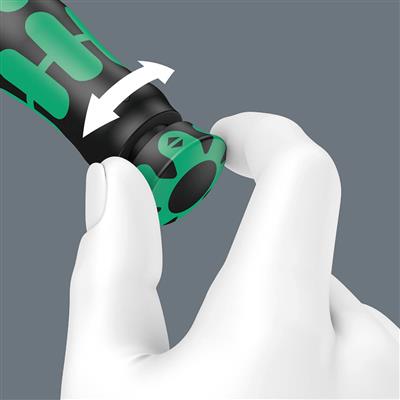

- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values

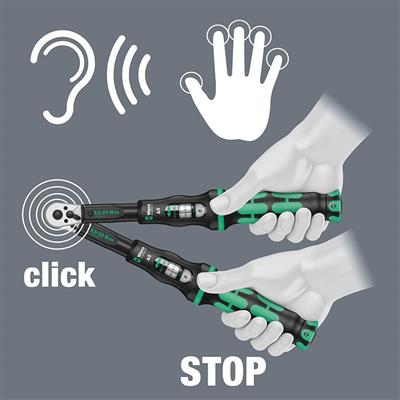

- Audible and tactile release mechanism when the set torque value is reached
- Measuring Range: 2.5-25 Nm; Precise to +/- 4% as per DIN EN ISO 6789-1:2017-07
- Very robust design with ergonomic 2-component handle suitable for right-hand use
Specifications
| Mounting Size | 1/4 in. |
| Main Scale Graduation | 1.0 Nm |
| Main Scale Measuring Range | 2.5 Nm - 25 Nm |
| Subscale Measuring Range | 1-18 lbf. ft. |
| Torque Wrench Length | 11-27/64 in. / 290 mm |
| Handle Length G2 | 4-49/64 in. / 121 mm |
| Clock Diameter | 1-21/32 in. / 42 mm |
| Diameter of the head | 1 in. / 25 mm |
| Height Ratchet head H2 | 7/16 in. / 11.5 mm |
Wera #05075604001
