Description

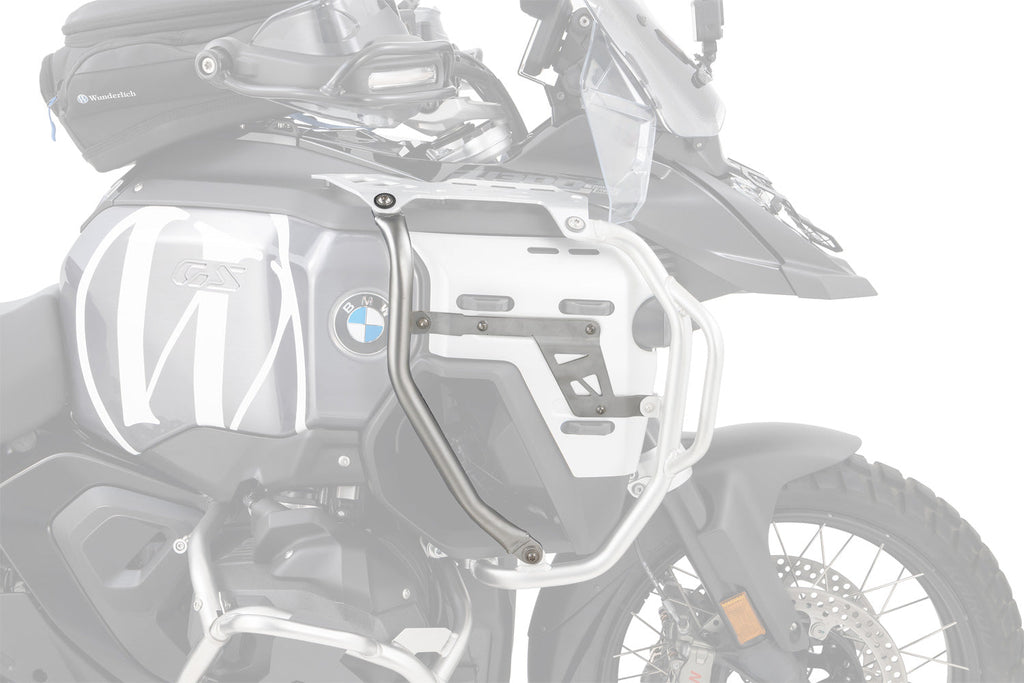

The Wunderlich ULTIMATE plus reinforcement bars complement the ULTIMATE tank protection bar and provide seamlessly integrated extra protection for the flanks of the BMW R 1300 GS Adventure
Features
- These ULTIMATE plus reinforcement bars complement the ULTIMATE tank protection bar #13215-000 and provide extra protection for the flanks of the Adventure
- They serve as a coupling element between the rack base and the lower tube extension – providing additional stiffness to the tube assembly
- The applied forces and moments are distributed across two additional mounting points on both the right and left sides
- The shape of the reinforcement bars also contributes to the elastic absorption of occurring peak loads
- The extra protection enhances passive safety and reduces the risk of injury to the rider's legs in case of a fall
- Perfect fit
- Seamless integrated solution
- Easy and quick installation
Note
The side bracket included in the scope of delivery of the reinforcement bars replaces the side bracket of the tank protection bar. It connects the tank protection bar with the reinforcement bar and serves as a shared side bracket for both.
Technical Specifications
- Material
- Protection bar
- Precision stainless steel tubing with high tensile strength and fracture elongation, carefully handcrafted, radii precisely formed on CNC tube bending machines, and then welded with a clean seam pattern. The stainless steel surface is carefully finished, bead-blasted, and finally electropolished
- Material
- Side bracket
- Made of aluminum, carefully finished
- Aluminium color – clear anodized
- Dimensions
- Tube diameter 25 millimeters
- Colour
- Protection bar in stainless steel finish, side bracket in matching anodized aluminum – monocolor
