Baja Designs - KTM LED Headlight Kits With Shell (2014 - 2016)

Baja DesignsSKU: BD-677091

Price:
Sale price$436.75

Qualifies for FREE SHIPPING📦

Stock:
Available to order - Ships with a delay. Contact us if you need a delivery estimate

Description

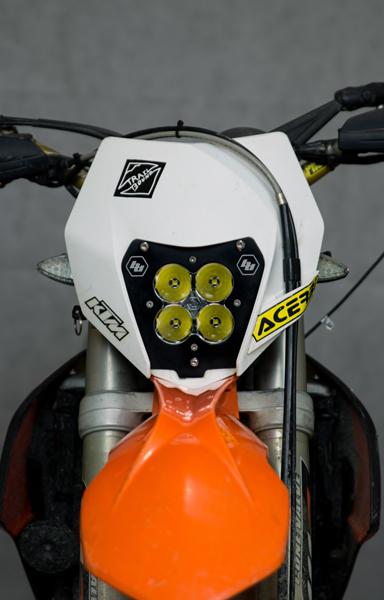

Specifically designed for those riders who are looking for more than just your average headlight. The XL80, LED KTM 2014-2016 w/Headlight Shell is in a league of its own, producing 9500 lumens at 80 watts giving you the perfect mix of power and performance, and offers a 20 percent dimming feature. The XL80, LED KTM 2014-2016 w/Headlight Shell has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance. The XL Pro, LED KTM 2014-2016 w/Headlight Shell is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Electric start bikes that require a stator modification or rewind will have to the purchase a switch & wiring harness kit. Unsure if your bike is powerful enough to run this kit? Check our chart HERE.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions & hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

Please note:

  • (Factory Dual-Sport Bikes)Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness P/N:12-9016

See also:

Features

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

  • Lumens: 9,500 Utilizing 4 Cree LEDs
  • Wattage/Amps: 80W / 5.50A
  • Dimensions: 4.43" x 3.65" x 4.43"
  • Weight: 2.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hardcoated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes

  • XL 80, LED KTM 2014-2016 w/Headlight Shell

Patterns

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
