BRP Rubber mount Scotts damper kit for Husqvarna 701 2016+ and KTM 690 2019+

  • Sale
  • Regular price $737.00 USD


The The BRP Rubber Mounted SUB "Scotts Under Bar"  Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles. NOW available with two different durometer bushings to fine tune the amount of vibration dampening.

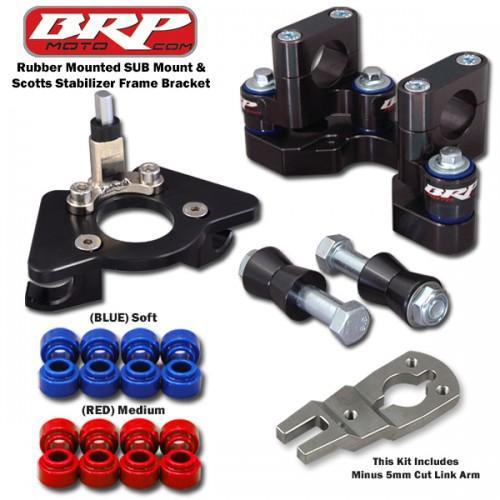

Mount kit includes (DM-SUB-3529-01R):
  • BRP Rubber Mounted SUB Adapter
  • Sets of Rubber Bushings -(Red = Medium and Blue = Soft.)
  • Aluminum Cones & All Necessary Hardware
  • Scotts Frame Bracket
  • LNK-4032-35 (Minus 5mm Cut damper Link Arm)

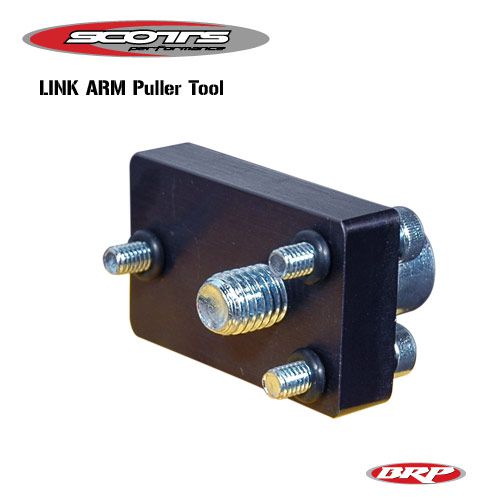

  • Damper arm removal tool

Complete kit includes (DS-SUB-3529-01R):

  • Everything in the mount kit except for the arm removal tool
  • One Scotts stabilizer with the link arm installed on it.

Fitment

  • 2016+ Husqvarna 701
  • 2019+ KTM 690 Enduro

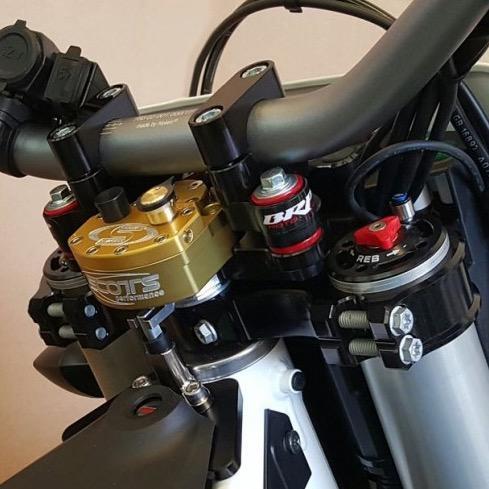

Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position. SUB Mounting a stabilizer offers several benefits over a conventional "above bar" setup and is becoming a very popular setup for GP's, motocross, off road, dual sport applications and riders of taller stature.

  • This Kit Raises the handlebars 15mm taller than stock and puts the bars at 21mm in front of the steering stem (which is the stock bar position)
  • Lower Bend Bars can be used to compensate for additional height.
  • SUB Mounting reduces the risk of bodily injury
  • Stabilizer is tucked away and protected from potential damage from a crash.
IMPORTANT NOTE: This kit does not fit KTM 690 2018 and older. There is a different kit available for those models.
