ÖHLINS - Adventure Cartridge Kit for Yamaha Tenere 700 World Raid (FKA 116)

OhlinsSKU: OHLINS-FKA_116

Options:
Price:
Sale price$1,373.90

Qualifies for FREE SHIPPING📦

Stock:
In stock
 More payment options

Description

FKA 116

One of the best upgrades for your Yamaha Tenere.

Based on the successful road racing front fork technology, the FKA 100-series fully adjustable cartridge kit offers improved comfort and performance.

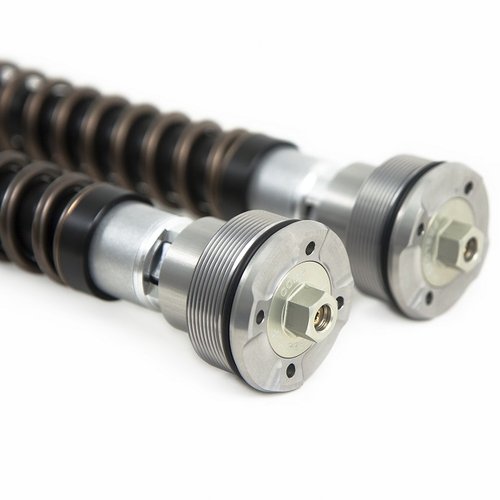

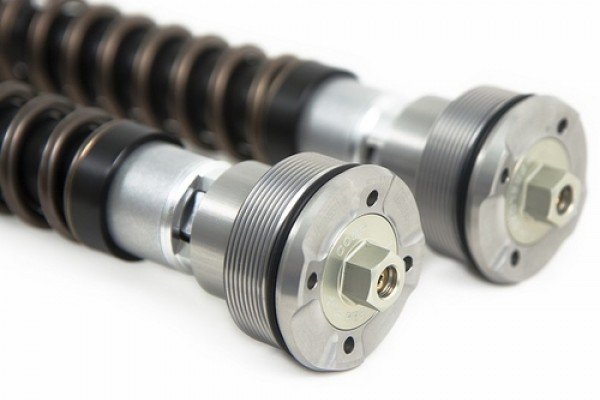

Based on the technology from Öhlins road racing cartridge kits, the front fork kit features our well proven NIX damping system, keeping compression and rebound damping separated, each confined to one fork leg. Among the advantages with this design is the improved stability and control of the damping system, as well as ease of use as all the adjusters, both for compression and rebound damping as well as spring preload, is located at the top of each fork leg.

Different springs are available to cope with individual requirements, as well as an effective hydraulic stop inside the cartridge to prevent bottoming. The compact design of the NIX cartridge means it will easily fit inside the upside-down original front forks of most medium sized adventure bikes. They are easy to install as well. Just pop out the old innards of the fork and install the Öhlins cartridges. Then you won't have to bother for a long while, as the cartridge is designed to withstand hard use for extended periods of time without servicing.

Fast gravel roads on a weekend or piloting around narrow trails to find that perfect stopover for the night. Now you can do it with complete control over your bike.

Note! This kit requires springs and oil which are sold separately.

Type Code: NIX30A

Requires springs from 08438 series. Approximately 0.5 litre Öhlins suspension fluid required per fork.

Tech
  • Öhlins NIX Technology
  • Fully adjustable from the top cap
  • Rebound in one leg, compression in the other leg
  • New hydraulic stop to prevent hard bottoming
  • Easy to install and service
  • Different spring rates available
  • Springs, oil and installation tools sold separately.

Spec. by Application for FKA 116

Application: 2022-2023 Yamaha Ténéré 700 World Raid
Notes: 08438- spring series
Length: 944 mm
Stroke: 230 mm
Recommended Ohlins Oil: 01309
Oil Level: 140mm
Fitted Spring: Sold separately, see notes
Mounting Position: Front Cartridge
Type code: NIX30A
Product Family: NIX 30 Adventure
Fitment

Fitment

This item may fit other vehicles not listed here.

Yamaha Ténéré 700 World Raid 2022-2023
