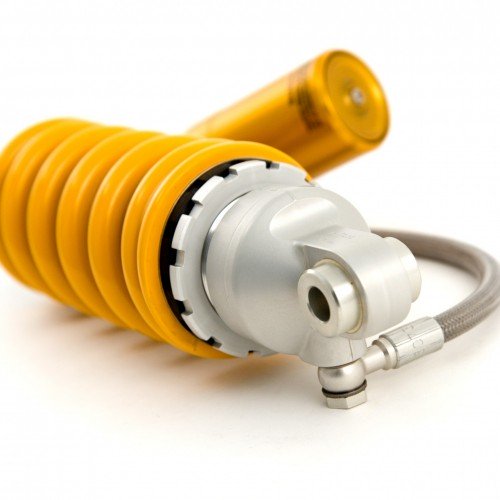

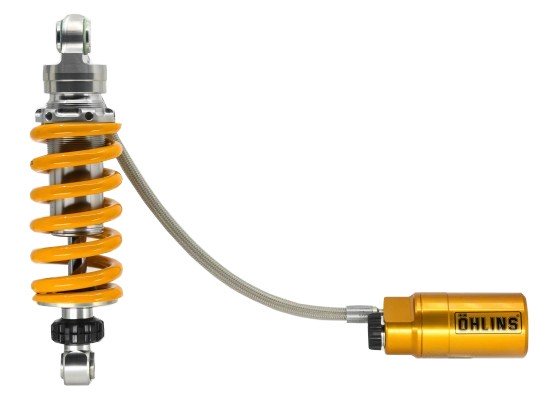

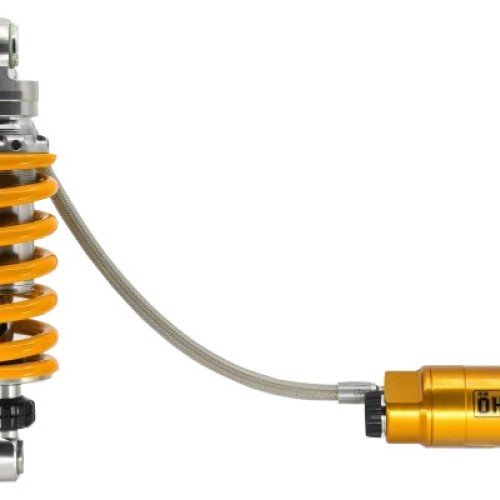

ÖHLINS - Mini S36 Shock (HO 047)

Save 6%
OhlinsSKU: OHLINS-HO_047

Options:
Price:
Sale price$658.90 Regular price$699.07

Qualifies for FREE SHIPPING📦

Stock:
In stock

Description

HO 047

*Limited Time Sale - Discount Applied in Cart* Based on the well proven and high performing STX 36 shocks, we now offer a performance and ride upgrade to scooters.

This sporty and dynamic bike is not only for commuting but also a bike you can really have fun with!

Öhlins suspension will improve your experience giving you better traction, comfort, and control over the bike.

Type Code: S36HR1C1

Tech
  • Adjustable Rebound and Compression damping
  • Monotube Shock with External Hose mounted Reservoir
  • High Pressure Nitrogen Gas Charged
  • STX Single Tube design
  • 36mm Piston Diameter
  • Adjustable Preload w/ tool
  • Top Level Comfort, Rideability, and Performance
  • Hard Anodized - Precision CNC-Machined Components
  • Low-friction Shaft / Seal Head design
  • Fully Serviceable and Repairable

Spec. by Application for HO 047

Application: 2020-2023 Honda MSX 125 (Grom)
Notes: Extra optional spring in box 66514-140 (140 N/mm)
Length: 244 mm
Stroke: 43 mm
Spring Rate: 120 N/mm n/m
Fitted Spring: 66514-120
Mounting Position: Rear Mono
Type code: S36HR1C1
Product Family: STX 36 Scooter
Application: 2022-2023 Honda MSX 125 (USA-Grom RR)
Notes: Optional spring 66514-140 (140 N/mm)
Length: 244 mm
Stroke: 47 mm
Spring Rate: 120 N/mm n/m
Fitted Spring: 66514-120
Mounting Position: Rear Mono
Type code: S36HR1C1
Product Family: STX 36 Scooter
Fitment

Fitment

This item may fit other vehicles not listed here.
Honda MSX 125 (Grom) 2020-2023
Honda MSX 125 (USA-Grom RR) 2022-2023
