ÖHLINS - Off-Road TTX Cartridge Kit (FGBA 1884)

OhlinsSKU: OHLINS-FGBA_1884

Options:
Price:
Sale price$1,175.00

Qualifies for FREE SHIPPING📦

Stock:
Available to order - Ships with a delay. Contact us if you need a delivery estimate

Description

FGBA 1884

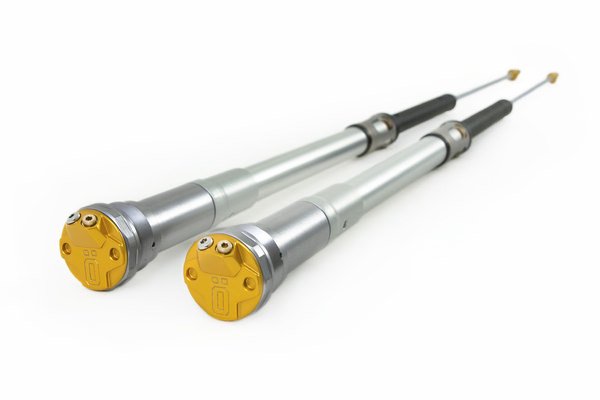

If you want to keep your front fork legs but still upgrade to Öhlins TTX, just pull out the standard inserts and pop in this powerful TTX22 cartridge kit from Öhlins R&D.

The same kit that is fitted in the Öhlins Front Fork is based on the Öhlins TTX-technology is also available as a stand-alone cartridge kit for all major models.

The TTX technology brings a positive pressure balance in the system, thanks to the twin tube technology.

The gas pressurized dividing piston inside pushes the hydraulic fluid back into the low pressure side and the end result is better improved performance and no more cavitation.

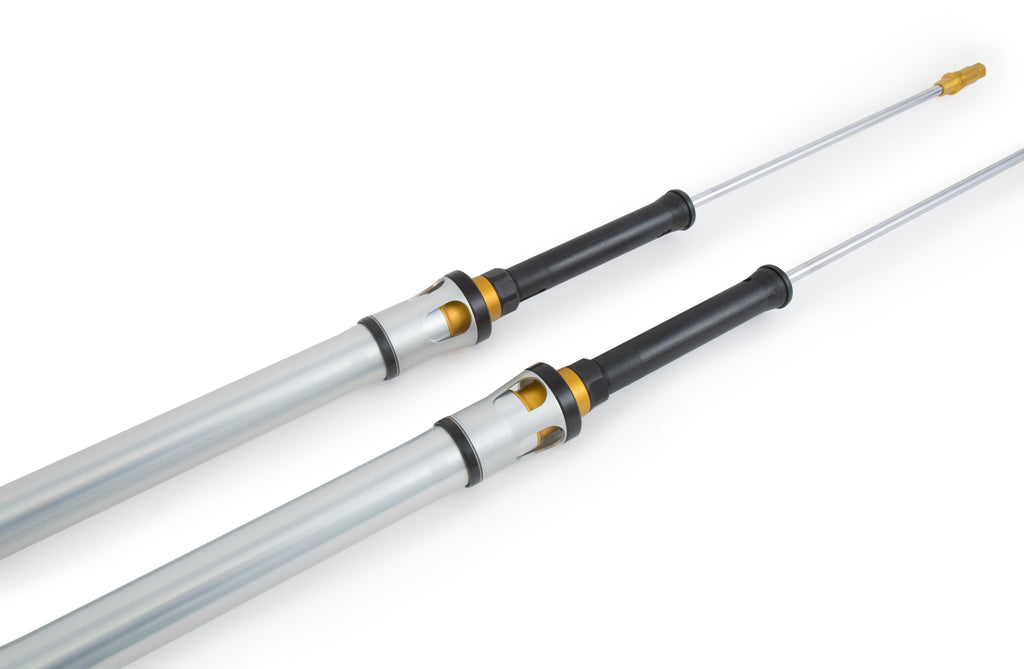

The kit is lighter thanks to an 8 mm steel hollow shaft and the main piston diameter is 22 mm.

All other details are made in aluminum.

Settings are constantly improved and a new one-way rebound valve was recently introduced which improves the performance and gives better front wheel control.

Available for most major models on the market.

Note!

This kit requires springs and oil which are sold separately.

Tech
  • Cartridge kit with patented TTX design
  • Gas pressurized damping system for immediate damping response
  • Easy installation in OE front forks

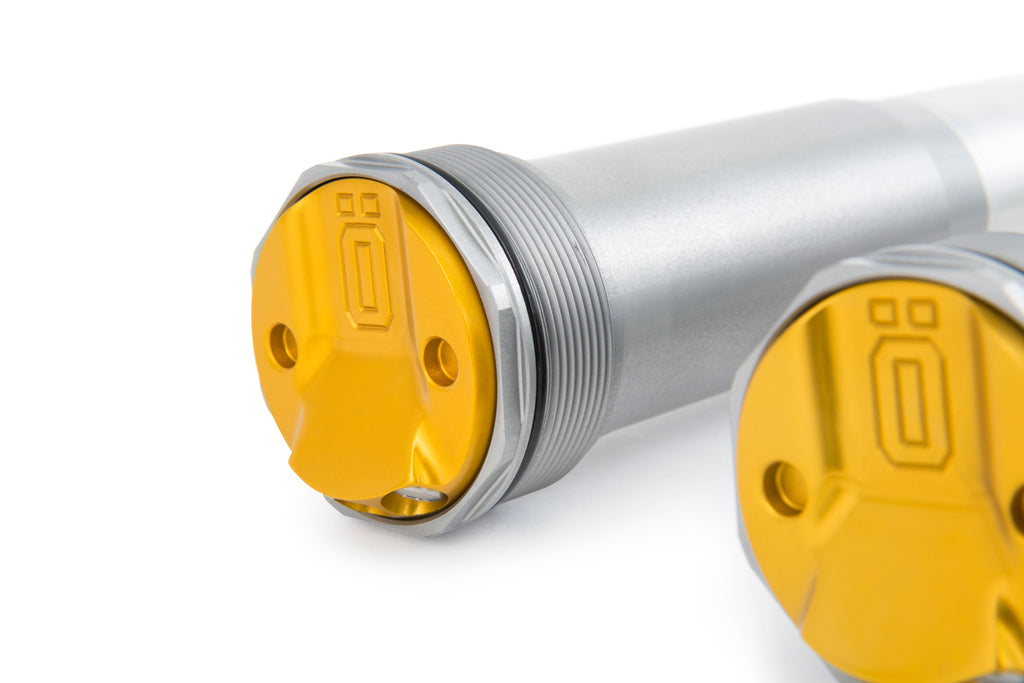

  • External compression adjuster
  • External rebound adjuster
  • Improved hydraulic stops to improve bottoming resistance
  • Springs, oil and installation tools sold separately.
  • New top out rubber for smoother top out feeling
  • Available for all major MX and Enduro models

Spec. by Application for FGBA 1884

Application: 2018 Beta RR 2T 125
Notes: 08765- series springs
Stroke: 296 mm
Recommended Ohlins Oil: 1330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2016-2018 Beta RR 2T 250/300
Notes: 08765- series springs
Stroke: 296 mm
Recommended Ohlins Oil: 1330
Type code: TTX Cartridge kit
Product Family: TTX 22
Application: 2016-2018 Beta RR 4T 350/390/430/480
Notes: 08765- series springs
Stroke: 296 mm
Recommended Ohlins Oil: 1330
Type code: TTX Cartridge kit
Product Family: TTX 22
Fitment

Fitment

This item may fit other vehicles not listed here.
Beta RR 2T 125 2018
Beta RR 2T 250/300 2016-2018
Beta RR 4T 350/390/430/480 2016-2018
