Kit includes everything you need to install Xtrig PHDS and Scotts Steering damper on your KTM 690 Enduro, 2011 to 2018.
If your 690 uses the top triple clamp KTM part number 7650103403133 (as all 690s from 2011 to 2018 do), you can use this kit to install the PHDS impact and vibration dampener handlebar clamps, plus the Scotts damper mount -- two of the best units used by factory racing teams.
Our v2.0 damper mount clamp allows you to install the Xtrig PHDS (or stock clamps) in all 4 possible positions. There are two sets of threaded holes on the damper bracket you can use in order to install handlebars closer or further away from rider. Additionally, you can flip the PHDS clamps to gain an extra 3mm offset. That gives you 4 possible positions to choose from.
The damper bracket gives you 20mm of rise. The PHDS clamps comes with 8mm optional risers (and two set of bolts to match the height) that you may use. We also sell riser blocks in 10mm increments, with the correct size titanium bolts, if you crave more rise.

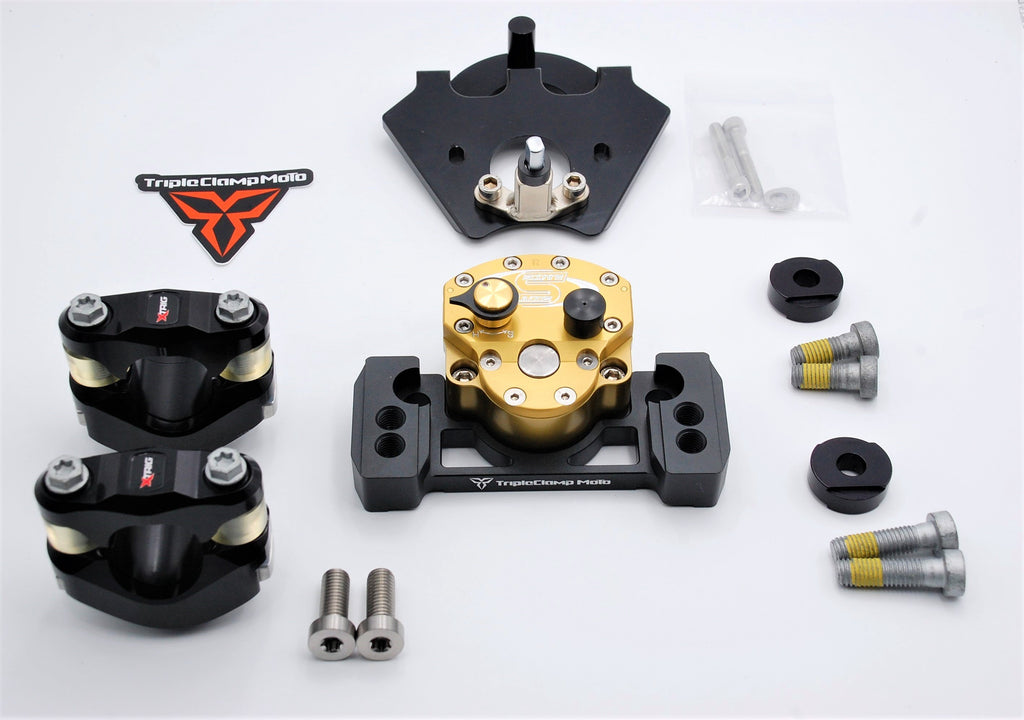

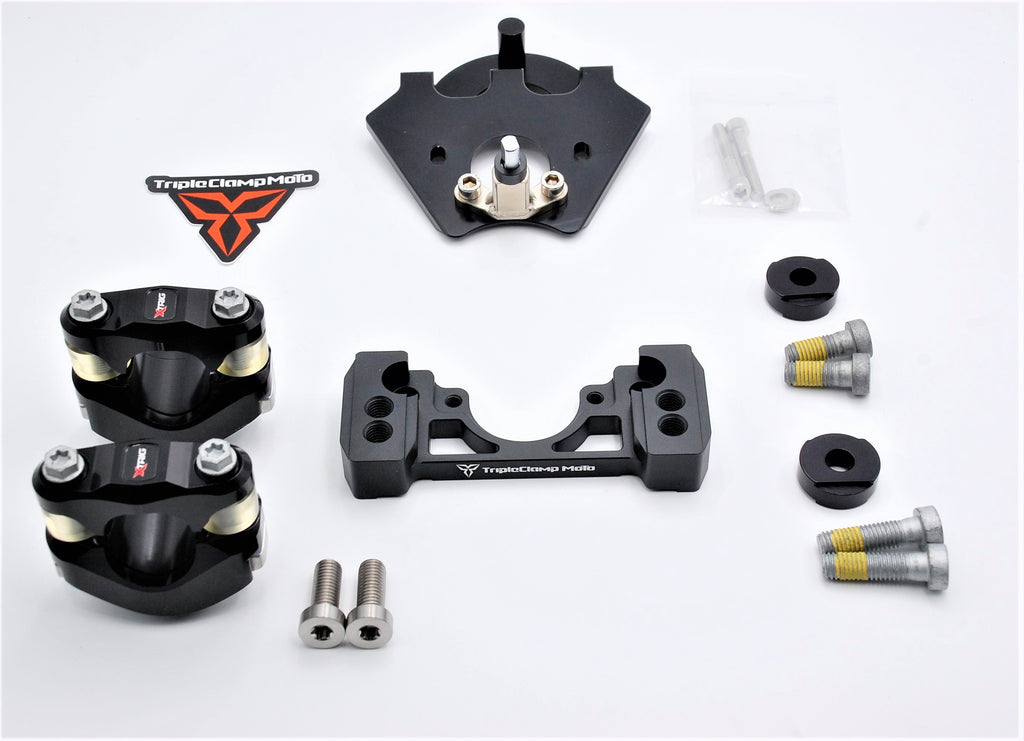

What is included in the kit:

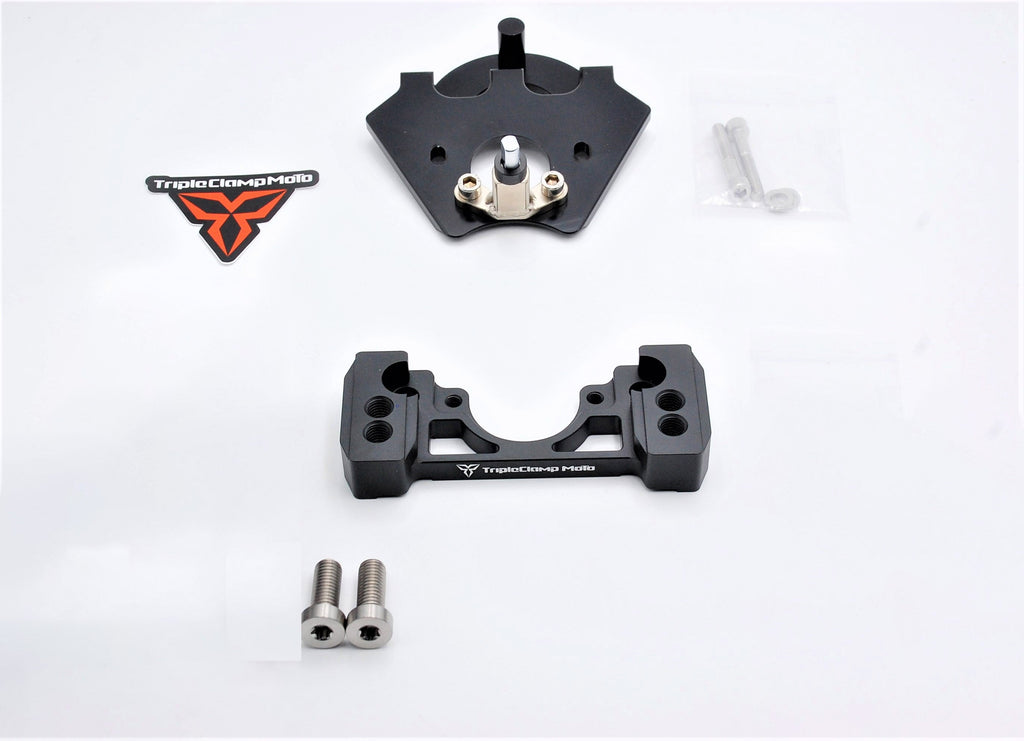

- Frame mount for the damper pin holder for your KTM 690 (2011-2018 only)
TripleClamp Moto damper wide mount bracket specifically made for 690. This has wider grip of 108mm on the handlebars compared with stock (90mm).
Titanium bolts, M10x25 low-profile to fasten the damper bracket to the top triple clamp.
Xtrig PHDS 50100008 handlebar clamps with standard rubbers (softer green and harder red rubbers are available separately)
- Scotts steering damper (stabilizer) with standard link arm
